$mobility-model-arora

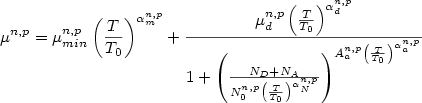

The Arora mobility model ([Arora1982]) is used to simulate the doping dependent mobility in Si and takes into account the scattering of the carriers by charged impurity ions which leads to a degradation of the carrier mobility (ionized impurity scattering). This model is temperature dependent.
The total concentration of ionized impurities is given by ND+NA.
Note: We use the nominal dopant concentration as specified in the input file and not the ionized one.
Parameter in formula |
Description |
Input parameter |
||
electrons |
holes |
electrons |
holes |
|
µminn |
µminp |
reference mobility parameter |
|
|
alpha_mn |
alpha_mp |
exponent |
|
|
µdn |
µdp |
reference mobility parameter |
|
|
alpha_dn |
alpha_dp |
exponent |
|
|
N0n |
N0p |
reference impurity parameter |
|
|
alpha_Nn |
alpha_Np |
exponent |
|
|
Aan |
Aap |
reference exponent parameter |
|
|
alpha_an |
alpha_ap |
exponent |
|
|
ND |
NA |
concentration of ionized donors/acceptors |
||
T |
T |
lattice temperature |
||
T0 |
T0 |
temperature (300 K) |
||
$mobility-model-arora optional !
material-name character required !
number-of-parameters integer required !
!++++++++++++++++++++++++++++++++++++
! for binaries, e.g. GaAs
!++++++++++++++++++++++++++++++++++++
n-mu-min double optional ! [cm2/Vs]
n-alpha-mu-min double optional ! []
n-mu-d double optional ! [cm2/Vs]
n-alpha-mu-d double optional ! []
n-n0 double optional ! [cm-3]
n-alpha-n0 double optional ! []
n-a-a double optional ! []
n-alpha-a-a double optional ! []
!
p-mu-min double optional ! [cm2/Vs]
p-alpha-mu-min double optional ! []
p-mu-d double optional ! [cm2/Vs]
p-alpha-mu-d double optional ! []
p-n0 double optional ! [cm-3]
p-alpha-n0 double optional ! []
p-a-a double optional ! []
p-alpha-a-a double optional ! []
!++++++++++++++++++++++++++++++++++++
! for ternaries, e.g. Al(x)Ga(1-x)As
!++++++++++++++++++++++++++++++++++++
n-bow-mu-min double optional ! [cm2/Vs] for alloys
n-bow-alpha-mu-min double optional ! [] for alloys
n-bow-mu-d double optional ! [cm2/Vs] for alloys
n-bow-alpha-mu-d double optional ! [] for alloys
n-bow-n0 double optional ! [cm-3] for alloys
n-bow-alpha-n0 double optional ! [] for alloys
n-bow-a-a double optional ! [] for alloys
n-bow-alpha-a-a double optional ! [] for alloys
!
p-bow-mu-min double optional ! [cm2/Vs] for alloys
p-bow-alpha-mu-min double optional ! [] for alloys
p-bow-mu-d double optional ! [cm2/Vs] for alloys
p-bow-alpha-mu-d double optional ! [] for alloys
p-bow-n0 double optional ! [cm-3] for alloys
p-bow-alpha-n0 double optional ! [] for alloys
p-bow-a-a double optional ! [] for alloys
p-bow-alpha-a-a double optional ! [] for alloys
$end_mobility-model-arora optional !
