5.2.9. Defining shapes in 2D and 3D simulations
Added in version 2.4.17.
- Files for the tutorial located in nextnano++\examples\basics
shapes_2D.nnp
shapes_3D.nnp
See structure{ region{} } - shape objects for reference on related keywords.

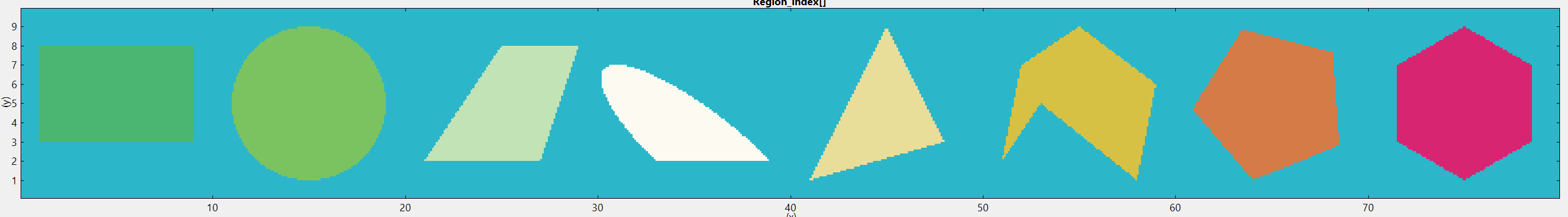

Figure 5.2.9.1 TEMPORARY FIGURE Shapes available for 2D simulations, from left to right: rectangle, circle, trapezoid, semielipse, triangle, polygon, regular polygon, and hexagon.
Figure 5.2.9.2 TEMPORARY FIGURE Shapes available for 3D simulations, from left to right: cuboid, sphere, cylinder, obelisk, hexagon obelisk, semielipsoid, cone, polygonal prism, regular prism, hexagonal prism, polygonal prism, regular pyramid, hexagonal pyramid, and pyramid.
