Teaching quantum mechanics!

Education

Schroedinger equation

The nextnano software can be used to study basic Quantum Mechanics text book examples. It can thus be used for teaching in classes.


Examples

  • Black body spectrum
  • 1D, 2D and 3D Schrödinger equation for arbitrary potential energy profiles
  • Infinite quantum well
  • Finite quantum well
  • Quantum harmonic oscillator
  • Triangular quantum well
  • Double quantum well
  • Matrix elements and selection rules
  • Expectation value
  • Perturbation theory
  • Tunneling: Transmission function of potential step, potential barrier, quantum well and double barrier
  • Periodic structures: Superlattice
  • Energy bands
  • Band structure (Tight-binding)
  • ... more examples will be added soon.

Handout

A preliminary handout containing some nextnano examples is available. (Version 2016-05-11)

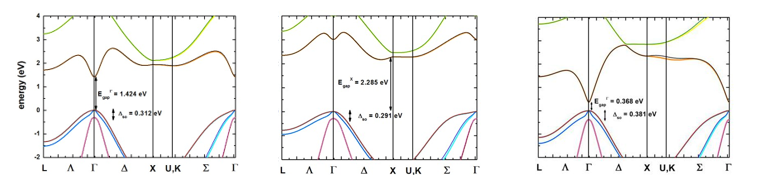

Tight-binding (sp3s*)

Tight-binding band structure

Empirical tight-binding (sp3s*) band structure of GaAs, GaP, AlAs, InAs, C (diamond) and Si

What you can learn:
  • tight-binding band structure of bulk semiconductors

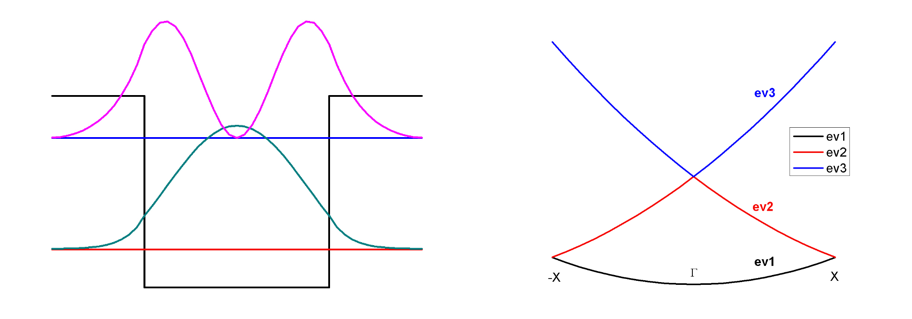

Dispersion in infinite superlattices: Minibands (Kronig-Penney model)

Minibands

Dispersion in infinite superlattices: Minibands (Kronig-Penney model)

What you can learn:
  • Schrödinger equation in 1D with periodic boundary conditions
  • superlattice dispersion
  • band structure of an artificial crystal (quantum well crystal)

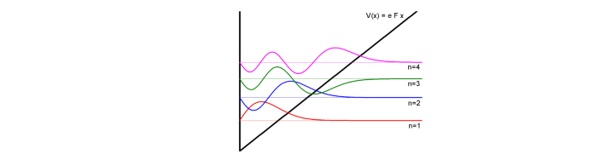

Triangular quantum well

Triangular well

Triangular well

What you can learn:
  • Energy levels and wave functions of a triangular quantum well
  • Schrödinger equation

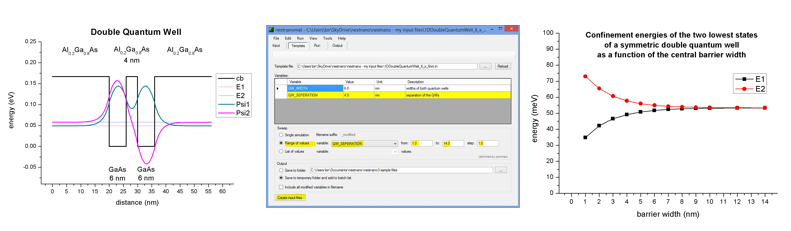

Double quantum well

Double quantum well

Double quantum well

What you can learn:
  • Energy levels and wave functions of a double quantum well as a function of quantum well separation (barrier width)
  • Schrödinger equation
  • Template feature of nextnanomat

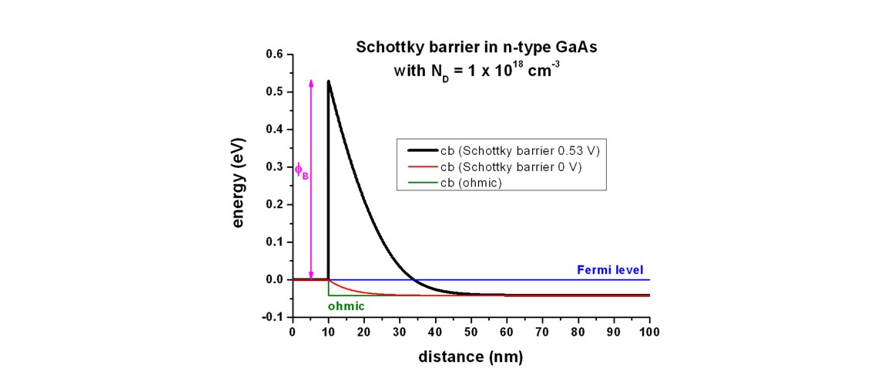

Schottky barrier

Schottky barrier

Schottky Barrier

What you can learn:
  • Metal-semiconductor interface: Fermi-level pinning; Ohmic contact vs. Schottky contact vs. Surface charge density vs. Surface doping
  • Poisson equation

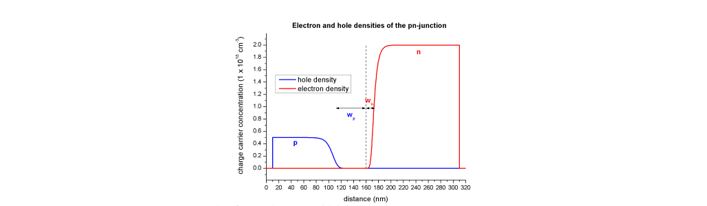

pn junction

pn junction

Example 1: GaAs pn junction (forward bias)

What you can learn:
  • doping
  • Poisson equation
  • apply a bias, drift-diffusion calculation, recombination
  • Current-Poisson equation

Quantum well (Interband transitions)

Quantum well

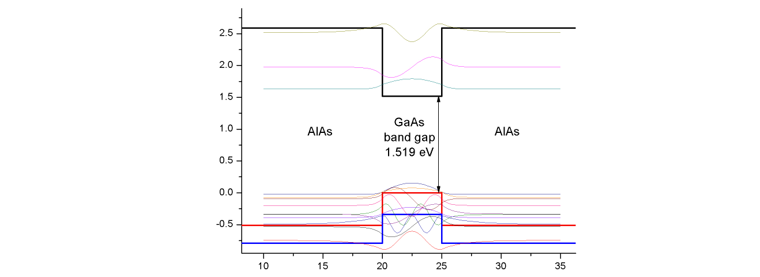

Optical interband transitions in a quantum well - Matrix elements and selection rules

What you can learn:
  • Energy levels and wave functions of an infinite and finite quantum well, interband transition matrix elements (spatial wave function overlap), selection rules
  • Schrödinger equation

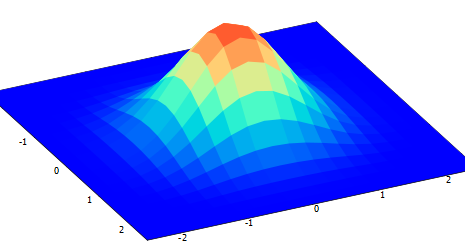

Spherical Si Quantum Dot (Artificial Atom)

Spherical Si Quantum Dot (Artificial Atom)

Hole energy levels of an "artificial atom" - Spherical Si Quantum Dot (6-band k.p)

What you can learn:
  • 3D simulation, quantum dot, spin-orbit splitting, artificial atom
  • 6-band k.p Schrödinger equation in 3D
